Russell's saggy 1986 4Runner gets the 12 inch coils
(15 pics loading)
JUNE 21 2008

Russell's Runner has the usual Runner sag. It's his daily driver and sometimes is called upon to pull a 4X8 utility trailer loaded with firewood or soil.

Before the lift, Russell measured 9 7/8" from the fender to wheel lip.

I made the mounts up...this lift/payload system is very effective.

Russell's friend, Jason, hacks away with the cordless to remove the steel bump-stops.

Russell helps out with the 30 year old Craftsman.

A grinder cleans up the rough corners and removes the paint for the MIG welding to come.

Much better.

hmmm...should I just run a 1 inch bead on each end or....

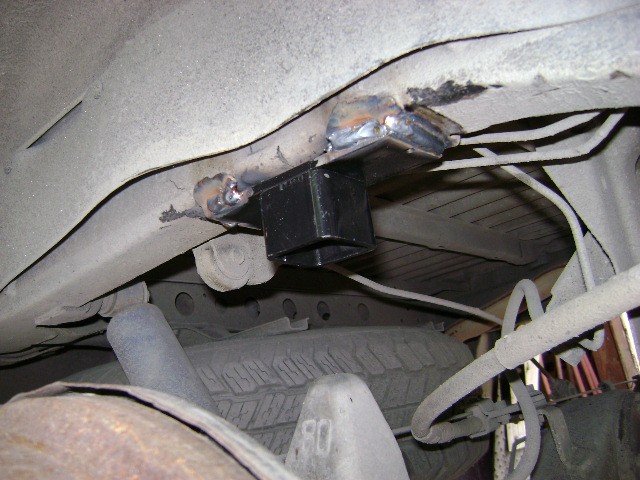

It's on there.


With both mounts in place like that, slipping the coil in could be a challenge....but this deluxe spring compressor takes the work out of it.

One in and one to go.

A shot of the old Craftsman and the items removed.

Here's the "BEFORE" shot again....notice the wheelwell area.

"AFTER" shot...Russ now measures 12 3/8" from fender to wheel lip for a net lift of 2.5".

This took 2 hours to install. Russ emailed me back and to quote him........."The ride is definitely softer, HUGE improvement! Thanks again for the solution! I'll be in touch, Russell"
